SON Hub dynamos

Electricity for Lighting and Charging

Consequently designed for smooth running and for longevity, SON hub dynamos have been undisputed benchmark for many years. The generator is precisely adapted to the intended use and thus efficiently powers headlight, rear light or any charging device. Due to high-end hub technology SON hub dynamos perform with longest possible durability – regardless if it‘s a standard hub dynamo or a special version for mountain bike, folding bike or trike

Made in Germany                                                 5 year guarantee

  SON 28

• the standard, all purpose hub dynamo

• for lots of light even at low riding speed

• also for various charging tasks using a charger

Polished, silver, black or red available in 32 hole or 36 hole.          Blue, orange and green available in only 36 hole

Weight:  440g            Flange Spacing:  62mm                                 6 Volt / 3 Watts conforming to legal regulations

Silver 32 Hole           303292                  Silver 36 Hole           303692

Polished 32 Hole            303202              Polished 36 Hole            303602

Red 32 Hole         303222        Red 36 Hole         303622

Black 32 Hole       303212     Black 36 Hole       303612

Blue 36 Hole             303642

Orange 36 Hole        303662

Green 36 Hole          303672

  SON 28 Tandem

• Hub dynamo with large flange spacing for bigger spoke hole numbers

Weight:  490g            Flange Spacing:  62mm                                   6 Volt / 3 Watts conforming to legal regulations

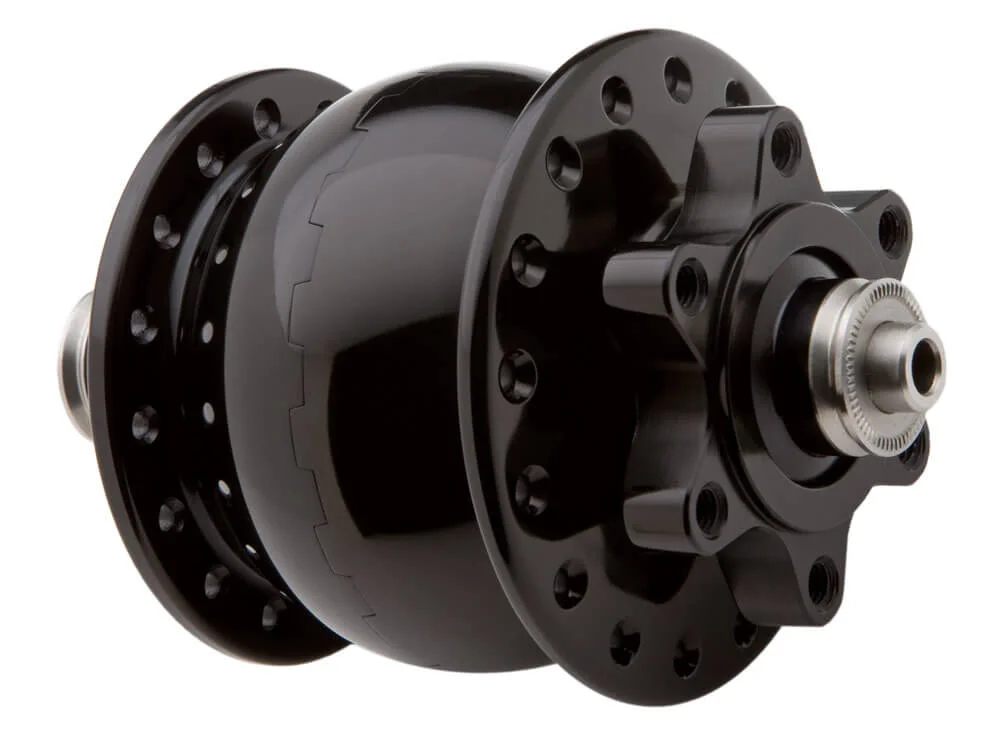

  SON 28 disc 6-bolt

• for rotors with robust 6-bolt mount

• for lots of light even at low riding speed

• also for various charging tasks using a charger

Weight:  460g                                                                                  6 Volt / 3 Watts conforming to legal regulations

Silver 28-hole               312892 Silver 32-hole               313292 Silver 36-hole               313692

Polished 32-hole          313202            Polished 36-hole          313602

Red 28-hole       312822       Red 32-hole       313222  Red 36-hole       313622

Black 28-hole     312812 Black 32-hole     313212              Black 36-hole     313612

Green 36-hole            313672

Blue 36-hole               313642

Orange 36-hole          313662

  SON 28 disc centre lock

• for rotors with Shimano centre-lock-mount

• for lots of light even at low riding speed

• also for various charging tasks using a charger

Weight:  430g                                                                                  6 Volt / 3 Watts conforming to legal regulations

Silver 32-hole    323292          Silver 36-hole    323692

Polished 32-hole  323202           Polished 36-hole    323602

Red 32-hole              323222            Red 36-hole              323622

Black 28-hole           322812                  Black 32-hole           323212                Black 36-hole           323612

Blue 36-hole            323642

  SON 28 12 disc 6-bolt

• for 12 mm thru axle

• for rotors with robust 6-bolt mount

• for lots of light even at low riding speed

• also for various charging tasks using a charger

Weight: 440 g                                                                                  6 Volt / 3 Watts conforming to legal regulations

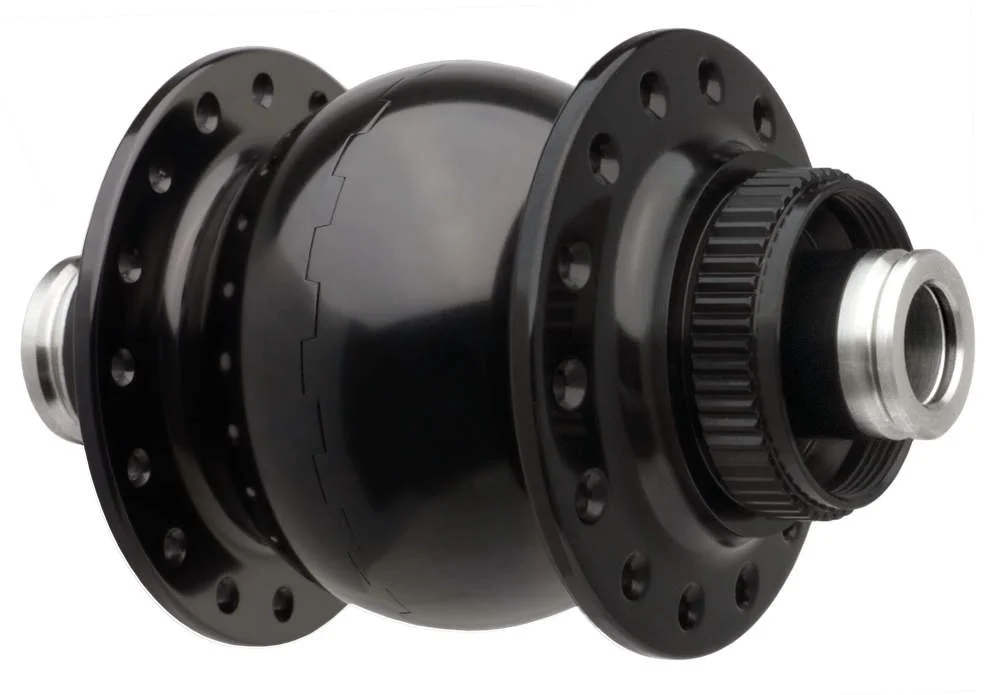

 SON 28 12 disc center lock

• for 12 mm thru axle

• for rotors with Shimano center-lock-mounting

• for lots of light even at low riding speed

• also for various charging tasks using a charger

Weight: 420 g                                                                                  6 Volt / 3 Watts conforming to legal regulations

  SON 28 15 100 - 6 Bolt Non Boost

• for 15 mm thru axle, standard width 100 mm

• for rotors with robust 6-bolt mount

• for lots of light even at low riding speed

• also for various charging tasks using a charger

NOT A STANDARD STOCK ITEM

Weight: 460 g                                                                                  6 Volt / 3 Watts conforming to legal regulations

Silver 32 Hole            333292            Silver 36 Hole            333692

Polished  32-hole      333202

Black 28-hole        332812 Black 32-hole        333212 Black 36-hole        333612

Red 32-hole           333222                    Red 36-hole           333622                    Blue 32-hole          333242

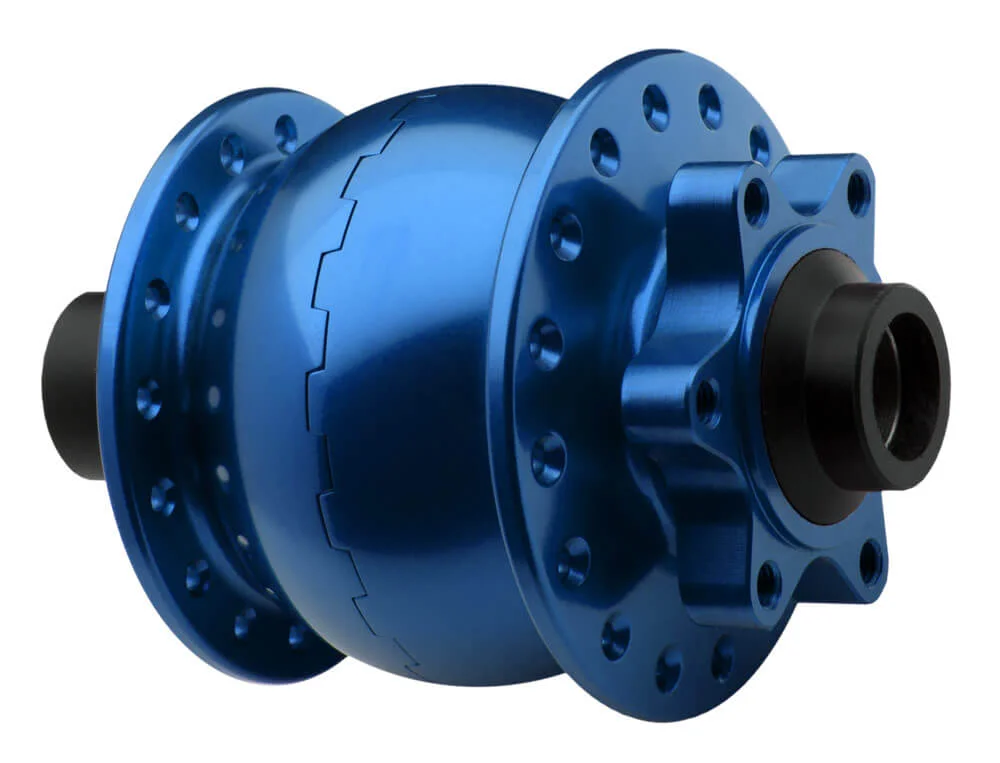

  SON 28 15 110 - 6 Bolt Boost

• for 15 mm thru axle, width 110 mm (Boost Standard)

• wide flange spacing (symmetrical)

• for rotors with robust 6-bolt mount

• for lot of light even at low riding speed

• also for various charging tasks using a charger

Weight: 480 g                           Flange spacing: 56 mm                  6 Volt / 3 Watts conforming to legal regulations

Black 28 Hole 382810

Silver 32 Hole       383290

Black 32 Hole    383210

Red 32 Hole         383220

Blue 32 Hole         383240

Black 36 Hole           383610

Red 36 Hole             383620

SON 28 15 110 - disc centre lock

• for 15 mm thru axle, width 110 mm (Boost Standard)

• wide flange spacing (symmetrical)

• or rotors with Shimano center-lock-mounting

• for lot of light even at low riding speed

• also for various charging tasks using a charger

Weight: 480 g                           Flange spacing: 56 mm                  6 Volt / 3 Watts conforming to legal regulations

  SON 28 135 VR

• Fatbike hub dynamo with front wheel rotor position

• for rotors with robust 6-bolt mount

Weight: 530 g                           Width: 135 mm                              Axle diameter: 9 mm                 Rotor position: 10.4 mm                  Flange spacing: 68 mm, symmetrical                                              6 Volt / 3 Watts conforming to legal regulations

SONdelux

A range of SONdelux options are available for standard forks and thru axles bikes.  Talk to us for assistance.
