Edelux II for Hub Dynamos
Standard Edelux II are designed to be powered by hub dynamos with 6 Volt AC output. Even at low speed you will have uniform and flickering-free light. Illumination increases up to 100 Lux at high speed. Standlight is very bright, and so is of more use than just to be seen. It switches off automatically after 4 minutes.
Standard Edelux II must not be powered by DC current (on pedelecs). The coaxial feed cable for connection on a hub dynamo is firmly soldered and potted within the housing. This helps to avoid vulnerable connectors. The rear light connects with a spade connector and a ring terminal. You may run the Edelux II without a connected rear light just as well.
Made in Germany 5 years guarantee
Edelux II
- Cable length 140 cm: Coaxial cable with SON connections separate. Incl. Edelux bracket (75520), separate white reflex reflector
- Cable length 60 cm: Coaxial cable with SON connections fitted. Incl. Edelux bracket (75520), separate white reflex reflector
- Cable length 36 cm: Coaxial cable with SON connections fitted. Incl. Edelux bracket (75520), separate white reflex reflector
For 6 Volt alternating current (hub dynamos) Brightness up to 100 lux Conforms with German legal regulations / ISO 6742 Weight: 75 g (without cable)
Part Numbers:
Polished 140 cm cable 681406 Silver 140 cm cable 681496 Black 140 cm cable 681416 Red 140 cm cable 681426 Blue 140 cm cable 681446 Orange 140 cm cable 681466 Dark Green 140 cm cable 681456 Gold 140 cm cable 681436 Pink 140 cm cable 681486 Light Green 140 cm cable 681476
Polished 60 cm cable 680605 Silver 60 cm cable 680695 Black 60 cm cable 680615 Red 60 cm cable 680625 Blue 60 cm cable 680645
Polished 36 cm cable 680305 Silver 36 cm cable 680395 Black 36 cm cable 680315 Red 36 cm cable 680325 Blue 36 cm cable 680345 Orange 36 cm cable 680365 Dark Green 36 cm cable 680355 Gold 36 cm cable 680335 Pink 36 cm cable 680385
Edelux II with Coaxial Adapter
- Cable length 60 and 100 cm with SON coaxial connector fitted, incl. coaxial adapter, Edelux bracket (75520), separate white reflex reflector
For 6 Volt alternating current (hub dynamos) Brightness up to 100 lux Conforms with German legal regulations / ISO 6742 Weight: 75 g (without cable)
Part Numbers:
Polished 100 cm cable 681009 Silver 100 cm cable 681099 Black 100 cm cable 681019
Polished 60 cm cable 680609 Silver 60 cm cable 680699 Black 60 cm cable 680619
Edelux II upside down
- For overhead mounting. The rear light is connected on watertight threaded bushing.
- With switch and coaxial cable 140 cm
For 6 Volt alternating current (hub dynamos) Brightness up to 100 lux Conforms with German legal regulations / ISO 6742 Weight: 75 g (without cable)
Part Numbers:
Polished switched, 140 cm cable 680000 Black switched, 140 cm cable 680010

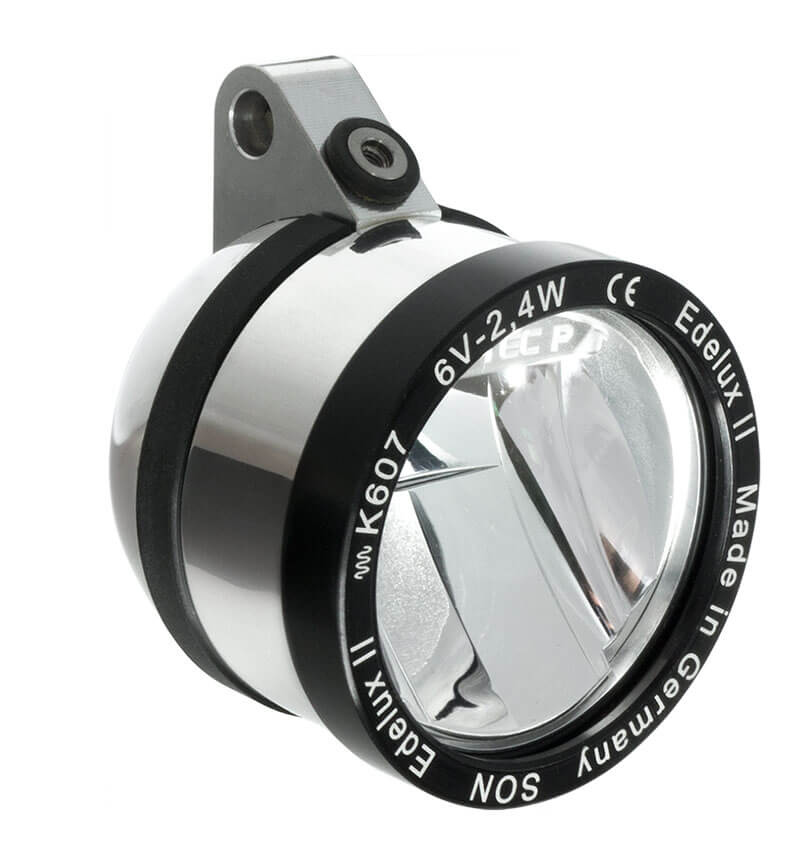

Edelux II upside down w/o switch
- For overhead mounting. For use on hub dynamo with separate switch. Mains in via threaded bushing / ring terminal.
- w/o switch, w/o cable and w/o rear light connection
For 6 Volt alternating current (hub dynamos) Brightness up to 100 lux Conforms with German legal regulations / ISO 6742 Weight: 75 g (without cable)
Part Number:
Polished - without cable 680001
